AEM® Universal, Barometric Pressure Sensor – May Require Minor Modification
$166.36
- Warranty1-year AEM limited warranty
- Product FitMay Require Minor Modification
AEM PSIG SENSOR KIT
The AEM pressure sensors are engineered and manufactured in an ISO 9001 facility. They help determine the pressure measurements in automotive systems. They have a ceramic capacitive sensing technology which is operational on 5V DC with an amplified linear output.

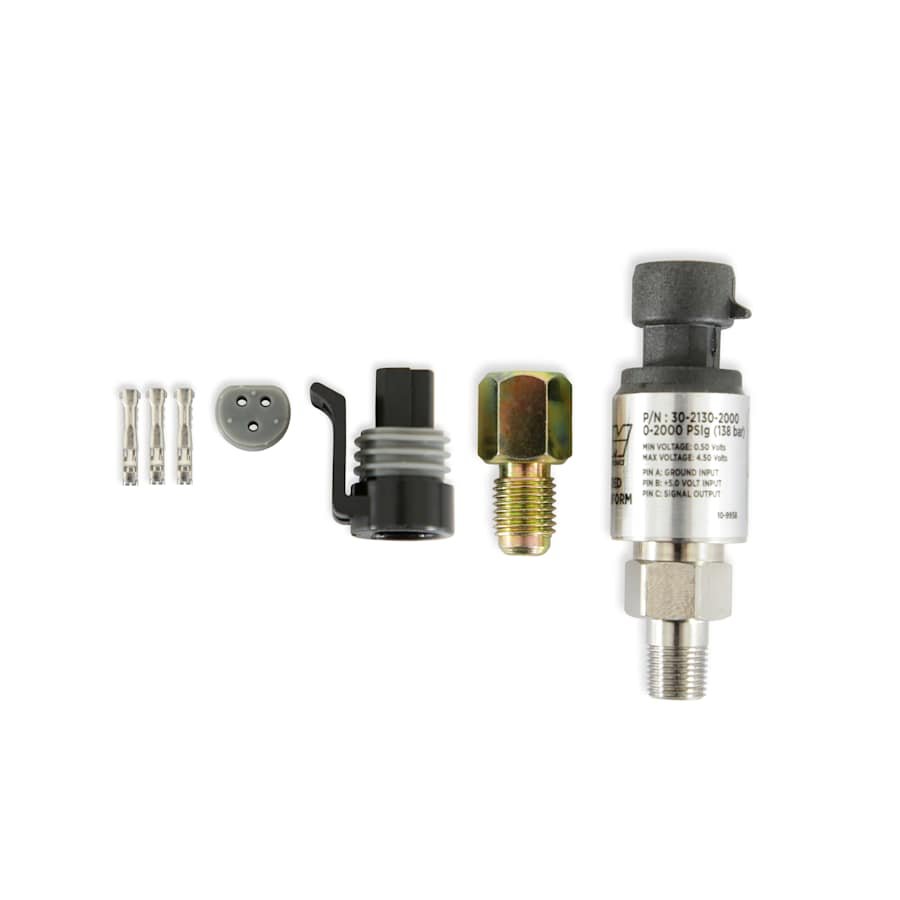

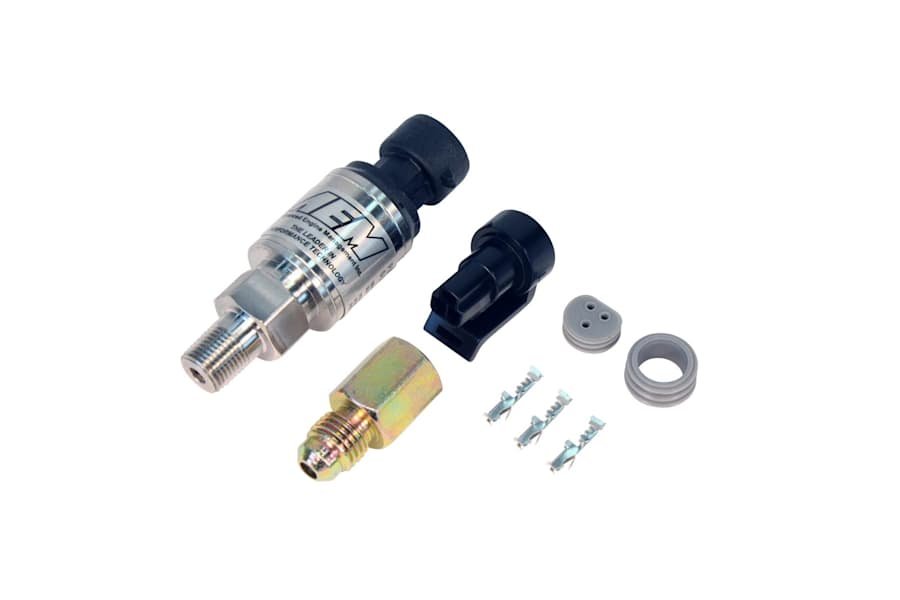

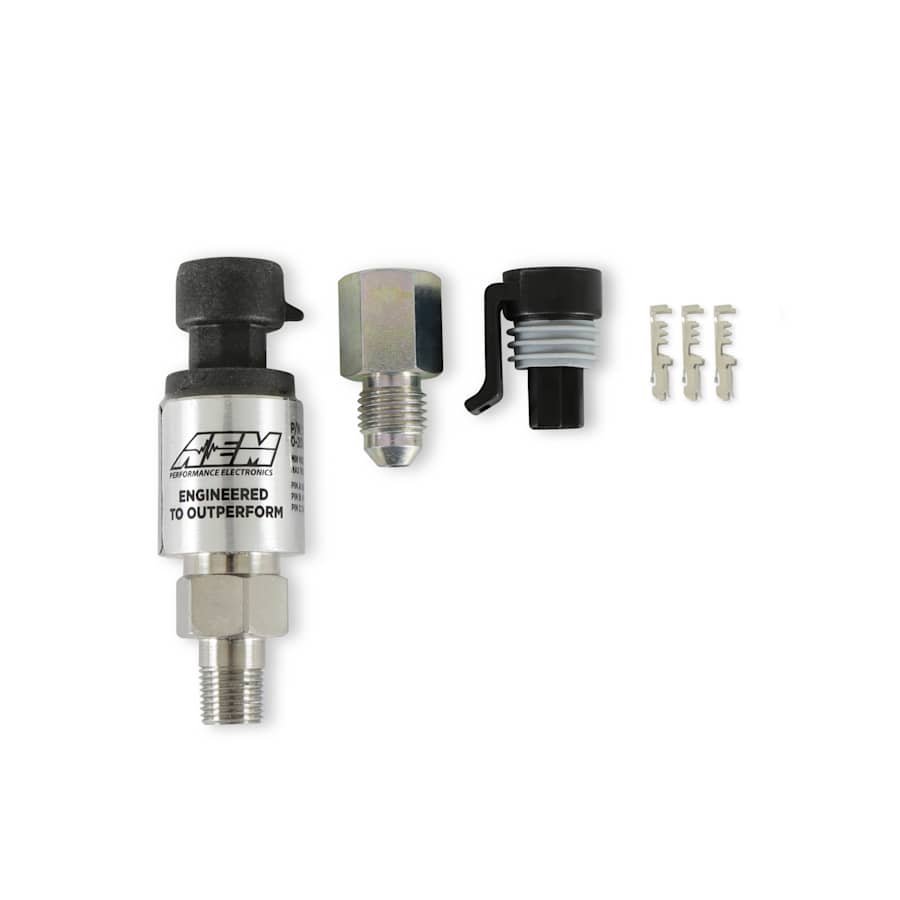

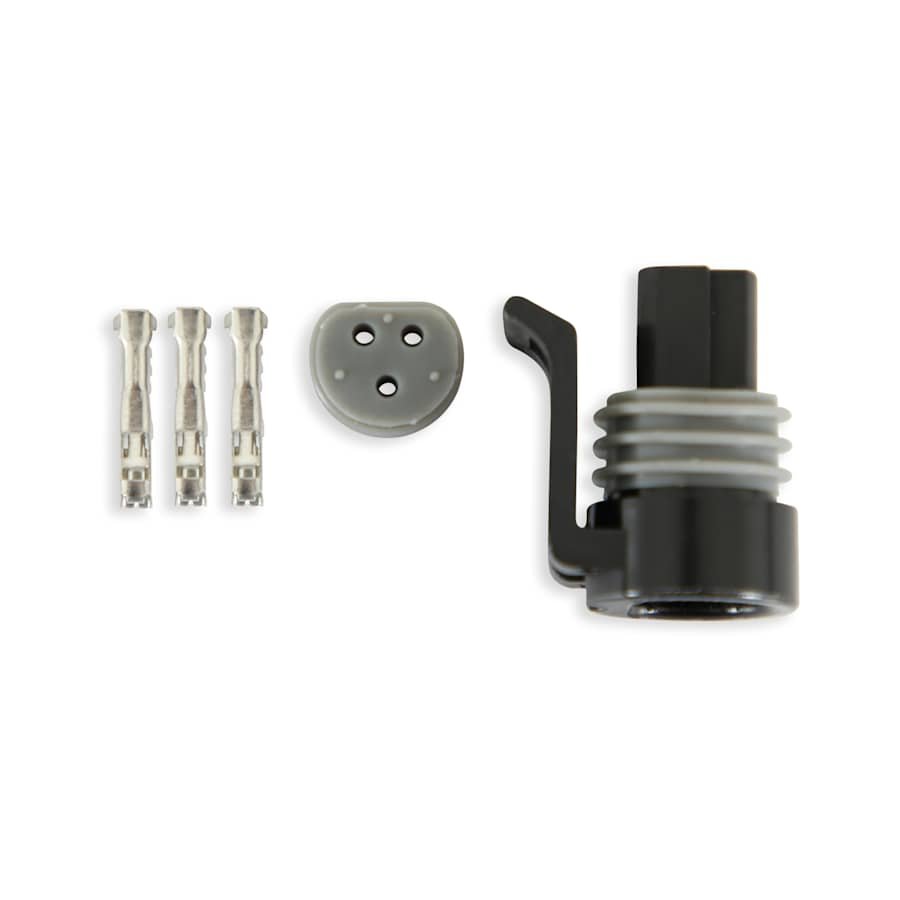

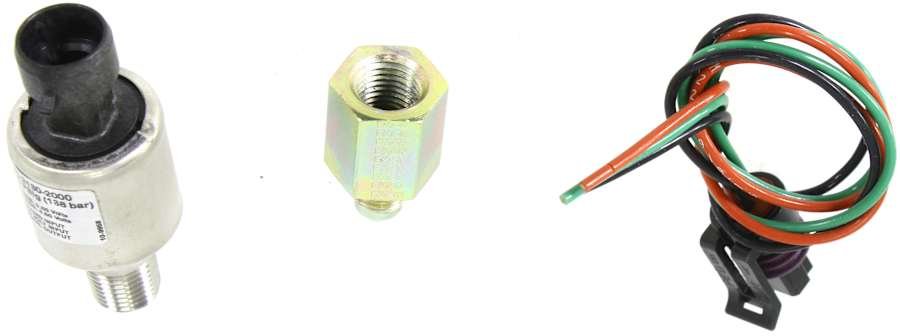

This kit includes a 2000 PSIg sensor and mating connector assembly
CONNECTION: 1/8 NPT to -4 Adapter
PERFORMANCE SPECIFICATIONS:
- Burst Pressure: 2000PSI
- Linearity: +/- 0.5 percent Span MAX
- Temp Error -20/+100C: +/- 2 percent Span
- Ratiometricity: +/- .05 percent Span
- Response Time: 1mS
- Operating Temperatures: -40C to 105C / -40F to 221F
- Wetted Materials: 316L Stainless Steel
- Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
- Weight: 85g
- Supply Current: 6mA at 5 Vdc
- Output: .5 to 4.5Vdc Linear
